EMI-TS-T6P TEST SYSTEM

TDK EMI-TS-T6P is a turnkey system designed specifically for commercial, pre-compliance testing.

Pre-compliance testing in the development process or during R&D evaluation serves as an inexpensive diagnostic tool. Moreover, it can be used to increase the probability of successfully completing full EMC compliance testing without the need for expensive redesigns. The EMI-TS-T6P can be used as a cost-effective method to reduce the time to market for your products.

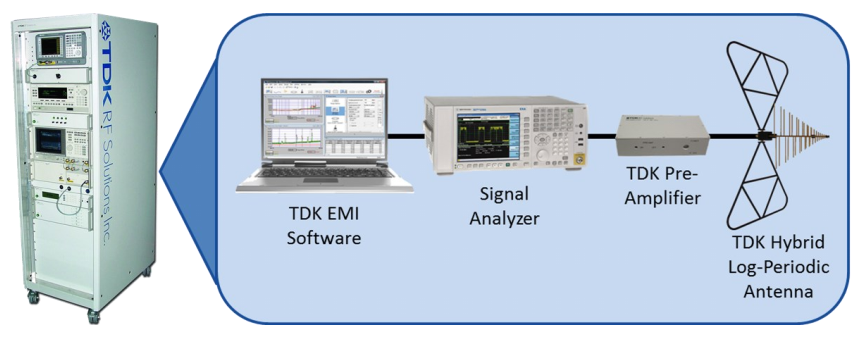

The TDK RF Solutions’ EMI-TS-T6P combines everything needed to conduct pre-compliance testing for commercial standards, such as CISPR22. It provides industry-leading. Microsoft-certified software intergrated with the world-class Keysight EXA receiver. Additionally, it includes TDK preamplifiers, antennaas, LISNs, antenna stand & commercial testing needs. It takes the worry out of ordering a test system.

Applications;

  • Pre-compliance testing
  • Commercial standards

Features:

  • Fully intergrated, Turnkey solution
  • Automated and manual EMC diagnostics tool
  • Includes all CISPR 16-1-1 bandwidths, and detectors
  • Advanced peak search tools
  • Easily customized for other standards

Included Equipment:

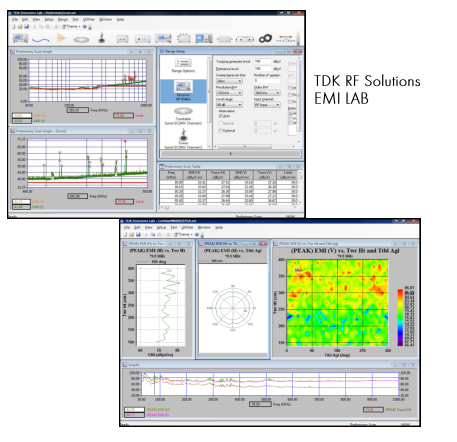

  • EMI-LAB: TDK Radiated and Conducted Emissions Software
  • N9010A-507: Keysight EXA EMI Receiver, 10 Hz to 7 GHz
  • N6141A-2FP: EMI measurement application
  • PA-02-000106: TDK Preamplifier, 10 MHz to 6 GHz, 35 dB Gain, ±3.5 dB NF
  • HLP-2006C: TDK Compact Hybrid Log Periodic Antenna, 20 MHz to 6 GHz
  • TRI-150R: Tripod, retractable, 1.5 m max height
  • LISN-C1550: Multi-line, 15 A LISN with built-in Pulse Limiter
  • RF Cables: 10 m and 2 m

Source: RSI
