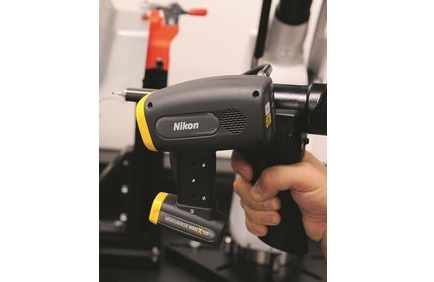

LASER SCANNER FOR PORTABLE ARMS FOR 3D METROLOGY

The handheld laser scanners are portable 3D inspection and reverse engineering applications. MMDx camera technology incorporates Enhanced Sensor Performance (ESP3) to scan all sample materials and surface finishes in a single move.

The digital camera benefits from a true non-interpolated resolution of more than a thousand points per stripe, providing optimum resolution for effiient scanning of freeform surfaces and features.

Main features:

  • Multiple stripe widths available from 50 to 200mm
  • Accuracy down to 10μm (1 σ)
  • Enhanced Sensor Performance for scanning materials with varying surface materials and reflectivity
  • Out-of-the-box scanning with direct plug into PC
  • Focus software for handheld 3D laser scanning
    • Real-time rendered scan visualization
    • Localizer-driven scanning menu
    • Mesh creation and processing
    • Part-to-CAD comparison

Applications:

  • Part-to-CAD inspection
  • Inspection of geometric features
  • Gap & flush inspection
  • Reverse engineering – from concept studio clay to class A surfaces
  • Input for rapid prototypingKiểm tra theo từng phần của CAD

Source: TECTEC Da Nang
