Contour– roundness – height measurement

Roundness measuring machine 135

Roundness measuring machine 135

Model: 135
Manufacturer: JENOPTIK
  • Distance C/Z axis: 275 mm
  • Max. test diameter: 340 mm
  • Max. measuring height: 350 mm
  • Rotation axis (C axis):
  • - Table diameter: 150 mm
  • - Roundness error µm+µm/mm measuring height: 0.03+0.0005 µm
  • - Axial run-out error µm+µm/mm radius: 0.04+0.0005 µm
  • - Centering range: ±2 mm
  • - Leveling range: ±0.6°
  • - Measuring and positioning speed: 1–10 1/min.
  • - Bearing: air
  • - Max. charge: 250 N
  • Vertical axis (Z axis): Traverse distance: 350 mm
  • Horizontal axis (R axis): Traverse distance: 220 mm
Buy product

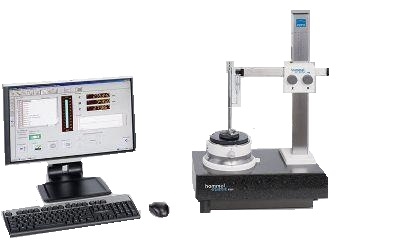

Roundness measuring machine F50

Roundness measuring machine F50

Model: F50
Manufacturer: JENOPTIK
  • Measurement
  • - Distance C/Z axis: 195 mm
  • - Max. test diameter: 300 mm
  • - Max. measuring height: 320 (560) mm
  • Rotation axis (C axis):
  • Table diameter: 150 mm
  • - Roundness error µm+µm/mm measuring height: 0.05+0.0005 µm
  • - Axial run-out error µm+µm/mm radius: 0.05+0.0005 µm
  • - Centering range: ±2 mm
  • - Leveling range: ±0.6°
  • - Measuring and positioning speed: 1–10 1/min.
  • - Bearing: air
  • - Max. charge: 250 N
  • Vertical axis (Z axis): Traverse distance: 320 mm
  • Horizontal axis (R axis): Traverse distance: 160 mm
Buy product
