Resistance Calibrator

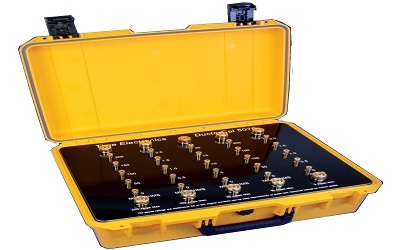

Micro-ohm Meter Calibrator
Model: 5070
Manufacturer: Time Electronics
- High accuracy Calibrator for Micro-ohm Meter
- Range: 0.2, 2, 20, 200, 2000mΩ
- Accuracy: 0.1%
- Gold plated terminals, Low thermal emf connection
- Portable robust carrying case

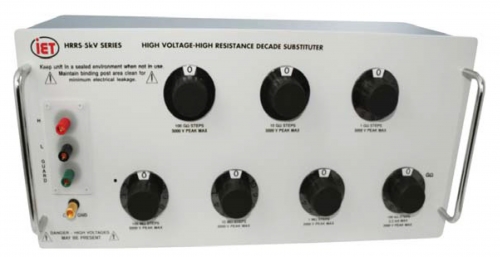

High Resistance Decade Box
Model: HRRS series
Manufacturer: IET Labs
- Resistance from 1 Ω to 10 TΩ +
- High-accuracy: up to .01%; 3 Accuracy Classes
- Max voltage of 5 kV or 10 kV; 2 Series
- Excellent TC - as low as 5 ppm/°C
- High stability - to 10 ppm/yr
- Low current solid silver alloy contact switches
- Low voltage coefficient - as low as 0.2 ppm/V
- Special and custom configurations available

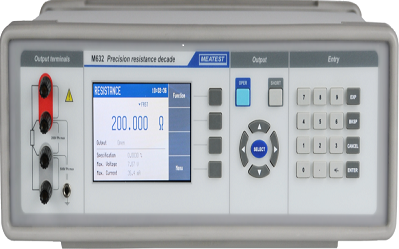

Precision Resistance Decade
Model: M632
Manufacturer: Meatest
- Real resistors switched by relays
- Resistance range 1 Ω - 1.2 MΩ
- Accuracy 0.003%
- Maximal voltage 200 Vpk
- Resolution from 10 μΩ
- Range of Pt sensor temperature simulation -200°C - +850°C
- Connection 2, 3, 4-wire
- Remote control RS232, optionally USB, IEEE488, Ethernet

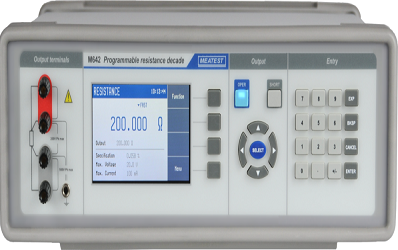

Programmable Resistance Decade
Model: M642
Manufacturer: Meatest
- Real resistors switched by relays
- Resistance range 0.1 Ω - 20 MΩ
- Accuracy 0.02%
- Maximal load 5 W
- Maximal voltage 200 Vpk
- Resolution from 1 μΩ
- Range of Pt sensor temperature simulation -200°C - +850°C
- Connection 2, 3, 4-wire
- Remote control RS232, optionally USB, IEEE488, Ethernet
