Uncooled thermal imaging sensor

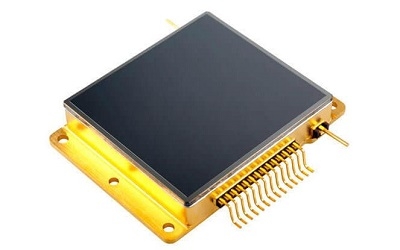

Pico1024 Gen2 XGA

Pico1024 Gen2 XGA

Model: Pico1024
Manufacturer: ULIS

Pico1024 Gen2 XGA with high resolution, high contrast imaging for long range detection.
Features:
 - Resolution: XGA 1024 x 768
 - Pixel pitch: 17 µm x 17 µm
 - Material: resistive amorphous silicon
 - Spectral response: 8 - 14 μm
 - Overall dimension (mm): 41.2 x 30 x 6.6 pin out excluded
 - Weight: < 30 g
Performance:
 - NETD: < 50 mK (F/1, 300K, 30Hz)
 - Frame rate: up to 120Hz
 - Typical array operability: > 99.9%
 - Low power consumption: < 210 mW
 - Extended operating temperature range: - 40°C to + 85°C
 - Standards: MIL-STD-810 and -883
 - Over exposure / Sun safe
Applications:
 - Military, Surveillance & Security, Thermography

Buy product

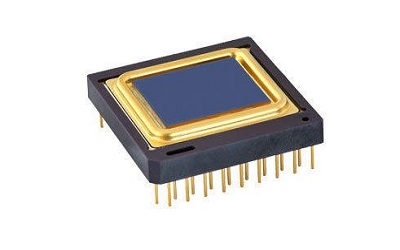

Pico640 Gen2 VGA

Pico640 Gen2 VGA

Model: Pico640
Manufacturer: ULIS

Pico640 Gen2 VGA is designed for equipment manufacturers and demanding users
Features:
 - Resolution:VGA 640 x 480
 - Pixel pitch: 17 µm x 17 µm
 - Spectral response:  8-14µm
 - Overall dimension (mm): 24.13x24.13x4.14 pin out excluded
 - Weight : <6.5g
Performances:
 - Array operability: > 99.5% ou > 99.8%*
 - NETD<40mK or 50mK*@30Hz, 300K, F/1
 - Frame Rate : up to 120Hz
 - Power consumption: < 130mW
 - Operating Range : -40°C to +85°C
 - Standards: MIL-STD-810 and -883
 - Over exposure / Sun safe
Ordering references: „ PICO640-046 „ PICO640-046+
Applications:
 - Surveillance & Security, Outdoor leisure activities, Military, Thermography

Buy product

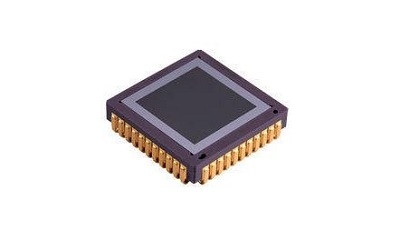

Pico384 Gen2 QGVA

Pico384 Gen2 QGVA

Model: Pico384
Manufacturer: ULIS

The Pico384 Gen2 is a Surface Mount Device (SMD J-LEAD 44) that is easy to integrate into assembly processes.
Features:
 - Resolution: QGVA 384x288
 - Pixel pitch: 17 µm x 17 µm
 - Spectral response: 8 - 14 μm „
 - Maximum frame rate up to 60 Hz full resolution
 - Overall dimensions (mm): 16.5 x 16.5 x 4.2 pin out excluded
 - Weight: < 3 g
Performance:
 - NETD < 60 mK (F/1, 300 K, 50 Hz) „
 - Low power consumption: < 220 mW
 - Array operability: > 99.8 %
 - Extended operating temperature range: –20°C to + 85°C
 - Surface Mount Device J-LEAD 44, compliant with JEDEC’s reflow and handling standards: J-STD-020E and J-STD-33B
 - Overexposure/sun safe
Appications:
 - Outdoor & leisure, Thermography, Surveillance & Security, Firefighting, Transportation

Buy product

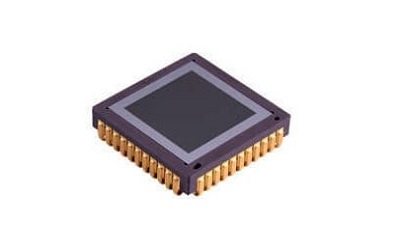

Pico160 Gen2 QQVGA

Pico160 Gen2 QQVGA

Model: Pico160
Manufacturer: ULIS

A single product for imaging and advanced detection - QQVGA Resolution
Features:
 - Resolution: QQVGA 160x120
 - Spectral response: 8-14µm
 - Overall dimension (mm): 16.5x16.5x4.22
 - Weight : <5g
 - Over exposure/sun safe
Performances:
 - NETD: <60mK@30Hz, 300K, F/1
 - Frame Rate: up to 60Hz
 - Power consumption: < 220mW
 - Operating Range: -40°C to +85°C
Applications:
 - Firefighting, Thermography

Buy product

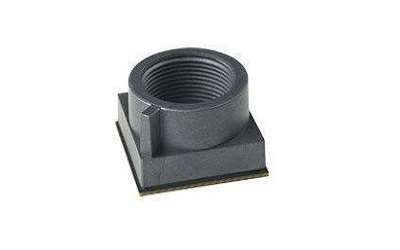

Micro80 Low Resolution

Micro80 Low Resolution

Model: Micro80
Manufacturer: ULIS

Micro80 Gen2 leverages the very best of first generation 80 x 80-format thermal image sensors.
Features:
   - Detection technology: microbolometer
   - Resolution: 80x80 2D array,
   - Pixel pitch: 34 x 34 μm
   - Spectral response: 8 - 14 μm
   - Integrated lens holder: M10 mount
   - Overall dimensions: 14 x 14 x 9 mm
   - Weight: < 2 g
Performances:
   - Frame rate: up to 50 Hz
   - NETD: < 100 mK (F/1, 27°C, 50 Hz)
   - Scene dynamic > 200°C
   - Array operability : > 99.5 %
   - Low power consumption < 55 mW
   - Operating temperature range: -40°C to +85°C
   - Surface Mount Device BGA, compliant with JEDEC’s reflow and handling standards: J-STD-020E and J-STD-33B
   - Standards: MIL-STD-810 and -883
   - MTTF > 15 years
   - Overexposure/sun safe
Applications:
 - Thermography, Surveillance, Smart buildings

Buy product

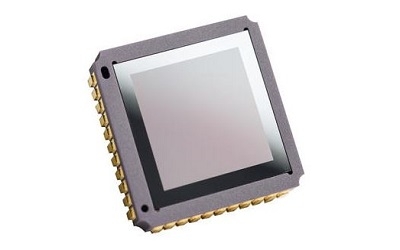

Atto320 QVGA

Atto320 QVGA

Model: Atto320
Manufacturer: ULIS

Atto320 is the first 12 µm technology thermal imager developed by ULIS.
Features:
 - Resolution: 320x240
 - Pixel pitch: 12 µm x 12 µm
 - Spectral response:8-14µm
 - Compatible with PICO384-053 (17µm)
 - JEDEC's reflow and handling standards compatible
 - Weight: < 3gr
 - Overall dimension (mm): 16.5x16.5x4.22
Performances:
 - NETD: < 60 mK (f/1, 300K, 30Hz)
 - Array operability: > 99.5 %
 - Frame rate: 30Hz
 - Low power consumption: < 220 mW
 - Operating temperature range: [-20°C; +60°C]
Applications:
 - Leisure, Thermography, Surveillance, Firefighting

Buy product
