Uncooled thermal imaging core

LWIR Thermal Imaging Camera Cores

LWIR Thermal Imaging Camera Cores

Model: Tau2 640
Manufacturer: FLIR

Tau 2 thermal imaging cameras offer an unmatched set of features, making them well-suited for demanding applications, such as unmanned vehicles (UVs), thermal weapon sights, and handheld imagers
System Overview:
 - Array format: VGA 640 × 512
 - Pixel Size: 17 µm x 17 µm
 - Spectral Band: 7.5 - 13.5 µm
 - Detector Material: VOx
  - NETD: < 50 mK @ F/1
Outputs:
 - Full Frame Rates: up to 60 Hz ( 9Hz or 7.5 Hz option for export)
 - Analog Video: Field-switchable between NTSC and PAL
 - Digital Video: 8- or 14-bit serial LVDS; 8- or 14-bit parallel CMOS; 8-bit BT.656
Operation & Control:
 - Image Control: Invert, revert, continuous digital zoom, dynamic zoom & pan, digital zoom presets,polarity, false color or monochrome, isotherms, AGC, second generation digital detail enhancement (DDE), image optimization (BPR, NUC & AGC’d video),Active Contrast Enhancement (ACE, Information Based Histogram Equalization (IBHEQ), Smart Scene Optimization (SSO), settable splash screens
 - Camera Control Manual via SDK & GUI
 - Signal Interface: Camera Link, RS-232
Physical Attributes:
 - Size (mm): 45 × 45 × 45 (less lens)
 - Mounting Interface: 6 attach points in lens mount, M2 x 0.4 on 3 sides, 2 per side (sealable bulkhead mounting feature on lens barrel [M29 × 1.0], WFOV only)
 - Weight: < 72g
Power:
 - Input Voltage: 4.0 – 6.0 VDC
 - Power Dissipation:  <1.2 W
Environmental:
 - Operating Temperature Range: -40° C to +80° C external temp
 - Scene Temp Range High gain: -40°C to +160°; Low gain: -40°C to +550°
 - Shock: 200 g shock pulse with 11 msec sawtooth
 - Temperature Shock: 5°/min
 - Vibration 4.3 g 3 axes, 8 hours each
 - Humidity: 5 - 95% non-condensing
 - Operational Altitude: +40,000 feet
FOV:
 - Focal length: 7.5mm to 100mm
 - FoV iFoV: 90°x69° to 6.2°x5.0°
Applications:
 - UAV, Handheld imagers, Security Cameras, Maritime cameras, Thermal weapon sights

Buy product
LWIR Thermal Imaging Camera Cores

LWIR Thermal Imaging Camera Cores

Model: Tau2 336
Manufacturer: FLIR

Tau 2 thermal imaging cameras offer an unmatched set of features, making them well-suited for demanding applications, such as unmanned vehicles (UVs), thermal weapon sights, and handheld imagers
System Overview:
 - Array format: 336 × 256
 - Pixel Size: 17 µm x 17 µm
 - Spectral Band: 7.5 - 13.5 µm
 - Detector Material: VOx
 - NETD: < 50 mK @ F/1
Outputs:
 - Full Frame Rates: 30/60 Hz (NTSC); 25/50 Hz (PAL) ; <9Hz option for export (factory set)
 - Analog Video: Field-switchable between NTSC and PAL
 - Digital Video: 8- or 14-bit serial LVDS; 8- or 14-bit parallel CMOS; 8-bit BT.656
Operation & Control:
 - Image Control: Invert, revert, continuous digital zoom, dynamic zoom & pan, digital zoom presets,polarity, false color or monochrome, isotherms, AGC, second generation digital detail enhancement (DDE), image optimization (BPR, NUC & AGC’d video),Active Contrast Enhancement (ACE, Information Based Histogram Equalization (IBHEQ), Smart Scene Optimization (SSO), settable splash screens
 - Camera Control Manual via SDK & GUI
 - Signal Interface: Camera Link, RS-232
Physical Attributes:
 - Size (mm): 45 × 45 × 45 (less lens)
 - Mounting Interface: 6 attach points in lens mount, M2 x 0.4 on 3 sides, 2 per side (sealable bulkhead mounting feature on lens barrel [M29 × 1.0], WFOV only)
Power:
 - Input Voltage: 4.0 – 6.0 VDC
 - Power Dissipation:  <1.0 W
Environmental:
 - Operating Temperature Range: -40° C to +80° C external temp
 - Scene Temp Range High gain: -40°C to +160°; Low gain: -40°C to +550°
 - Shock: 200 g shock pulse with 11 msec sawtooth
 - Temperature Shock: 5°/min
 - Vibration: 4.3 g 3 axes, 8 hours each
 - Humidity: 5 - 95% non-condensing
 - Operational Altitude: +40,000 feet
Applications:
 - UAV, Handheld imagers, Security Cameras, Maritime cameras, Thermal weapon sights

Buy product
LWIR Thermal Imaging Camera Cores

LWIR Thermal Imaging Camera Cores

Model: Tau2 324
Manufacturer: FLIR

Tau 2 thermal imaging cameras offer an unmatched set of features, making them well-suited for demanding applications, such as unmanned vehicles (UVs), thermal weapon sights, and handheld imagers
System Overview:
 - Array format: 324 x 256
 - Pixel Size: 25 µm x 25 µm
 - Spectral Band: 7.5 - 13.5 µm
 - Detector Material: VOx
 - NETD: < 50 mK @ F/1
Outputs:
 - Full Frame Rates: 30/60 Hz (NTSC); 25/50 Hz (PAL) ; <9Hz option for export (factory set)
 - Analog Video: Field-switchable between NTSC and PAL
 - Digital Video: 8- or 14-bit serial LVDS; 8- or 14-bit parallel CMOS; 8-bit BT.656
Operation & Control:
 - Image Control: Invert, revert, continuous digital zoom, dynamic zoom & pan, digital zoom presets,polarity, false color or monochrome, isotherms, AGC, second generation digital detail enhancement (DDE), image optimization (BPR, NUC & AGC’d video),Active Contrast Enhancement (ACE, Information Based Histogram Equalization (IBHEQ), Smart Scene Optimization (SSO), settable splash screens
 - Camera Control: Manual via SDK & GUI, dynamic range switching
 - Signal Interface: Camera Link, RS-232
Physical Attributes:
 - Size (mm): 45 × 45 × 45 (less lens)
 - Mounting Interface: 6 attach points in lens mount, M2 x 0.4 on 3 sides, 2 per side (sealable bulkhead mounting feature on lens barrel [M29 × 1.0], WFOV only)
Power:
 - Input Voltage: 4.0 – 6.0 VDC
 - Power Dissipation:  <1.0 W
Environmental:
 - Operating Temperature Range: -40° C to +80° C external temp
 - Scene Temp Range High gain: -40°C to +160°; Low gain: -40°C to +550°
 - Shock: 200 g shock pulse with 11 msec sawtooth
 - Temperature Shock: 5°/min
 - Vibration: 4.3 g 3 axes, 8 hours each
 - Humidity: 5 - 95% non-condensing
 - Operational Altitude: +40,000 feet
Applications:
 - UAV, Handheld imagers, Security Cameras, Maritime cameras, Thermal weapon sights

Buy product
Tau 2 LWIR Optics

Tau 2 LWIR Optics

Model: Tau 2 Optics
Manufacturer: FLIR

For 5 lens: 25 mm f/1.1 , 3 5 mm f/1.2,  50 mm f/1.2,  60 mm f/1.25,  100 mm f/1.6
Specifications:
 - Focal length: 25 mm - 35 mm  - 50 mm - 60 mm - 100 mm
 - Aperture: f/1.1 - f/1.2 -  f/1.25 -  f/1.6
 - FoV:
     25 mm f/1.1:  25° x 20° 0.680 mr
     35 mm f/1.2: 18°x14° 0.486 mr
     50 mm f/1.2: 12.4°x9.9° 0.340 mr
     60 mm f/1.25: 10.4°x8.3° 0.283 mr
    100 mm f/1.6:  6.2°x5° 0.170 mr
 - Min Focus Distance: 30cm -  60cm - 1.5m - 2.3m - 7m
 - Hyperfocal Distance: 21m - 35m - 71m - 122m - 160m
 - Lens Mount: M34x0.5 inside thread
 - Diameter: 42mm - 42mm -  58mm -  61mm - 82mm
 - Weight:112g - 150g  - 280g  - 200g  - 479g

Buy product
Thermal Imaging Cameras for sUAS

Thermal Imaging Cameras for sUAS

Model: VUE
Manufacturer: FLIR

Small, lightweight, affordable and easy to integrate, FLIR Vue is a snap to install and get in the air
Overview:
 - Thermal Imager: Uncooled VOx Microbolometer
 - Resolution: 640x512, 336x256
 - Lens Options:
   640x512:  9 mm; 62° × 49°  -  13 mm; 45° × 35°  -  19 mm; 32° × 24°
   336x256:  6.8 mm; 44° × 33° -  9 mm; 34° × 26°  -   13 mm; 24° × 18°
 - Spectral Band: 7.5 - 13.5 μm
 - Full Frame Rates: 30 Hz (NTSC); 25 Hz (PAL)
 - Exportable Frame Rates: 7.5 Hz (NTSC); 8.3 Hz (PAL)
Physical Attributes:
 - Size (in mm): 57.4 x 44.5 (including lens)
 - Weight: 92g - 113g (Configuration Dependant)
 - Precision Mounting Holes Two M2x0.4 on each of two sides & bottom. One 1/4-20 threaded hole on top
Image Processing & Display Controls:
 - Image Optimization for sUAS, Digital Detail Enhancement, Invertable Image, Polarity Control (black hot/white
hot) & Color Palettes
Interfacing:
 - Input Voltage: 4.8 - 6.0 VDC
 - Power Dissipation (peak): 1.2 W (2.2 W)
Environmental:
 - Operating Temperature Range: -20°C to +50°C
 - Non-Operating Temperature Range: -55°C to +95°C
 - Operational Altitude: 12,192m
Applications:
 - Airborne, Handheld imagers, Security Camera, Thermal weapon sights

Buy product
Thermal Imaging Cameras for sUAS

Thermal Imaging Cameras for sUAS

Model: Vue Pro
Manufacturer: FLIR

Designed for professional use, FLIR Vue Pro is more than a thermal camera, it is a thermal measurement instrument and data recorder that adds tremendous value to your sUAS operations and services.
Overview:
 - Thermal Imager: Uncooled VOx Microbolometer
 - Resolution: 640 × 512, 336 x 256
 - Lens Options:
    FOV for NTSC Analog Output
        640x512:  9 mm; 62° × 49°  -  13 mm; 45° × 35°  -  19 mm; 32° × 24°
        336x256:  6.8 mm; 44° × 33° - 9 mm; 34° × 26°  -   13 mm; 24° × 18°
    FOV for Full-Sensor Digital Output
        640x512:  9 mm; 69° × 56°  -  13 mm; 45° × 37°  -  19 mm; 32° × 26°
        336x256:  6.8 mm; 45° × 35° - 9 mm; 35° × 27°  -   13 mm; 25° × 19°
 - Spectral Band: 7.5 - 13.5 μm
 - Full Frame Rates: 30 Hz (NTSC); 25 Hz (PAL)
 - Exportable Frame Rates: 7.5 Hz (NTSC); 8.3 Hz (PAL)
Physical Attributes:
 - Size (in mm): 57.4 x 44.5 (including lens)
 - Weight: 92g - 113g (Configuration Dependant)
 - Precision Mounting Holes: Two M2x0.4 on each of two sides & bottom. One 1/4-20 threaded hole on top
Image Processing & Display Controls:
 - Image Optimization for sUAS, Digital Detail Enhancement, Invertable Image, Polarity Control (black hot/white
hot) & Color Palettes
Interfacing:
 - Input Voltage: 4.8 - 6.0 VDC
 - Power Dissipation (peak): 2.1 W (3.9 W)
Environmental:
 - Operating Temperature Range: -20°C to +50°C
 - Non-Operating Temperature Range: -55°C to +95°C
 - Operational Altitude: 12,192m
Optional Power & HDMI Video Module:
 - Input Power Range: 5 VDC – 28 VDC
 - Reverse Polarity Protection, Analog Video Output
 - HDMI Output 1280x720 @ 50hz, 60hz
Applications:
 - Airborne, Handheld imagers, Security Camera, Thermal weapon sights

Buy product
Thermal Imaging Cameras for sUAS

Thermal Imaging Cameras for sUAS

Model: Vue Pro R
Manufacturer: FLIR

The Vue Pro R adds fully radiometric data-gathering to sUAS applications as diverse as building and roof inspections, power grid inspections, infrastructure analysis, precision agriculture, and public safety.
Overview:
 - Thermal Imager: Uncooled VOx Microbolometer
 - Resolution: 640 × 512, 336 x 256
 - Lens Options:
    FOV for NTSC Analog Output
       640x512:  9 mm; 62° × 49°  -  13 mm; 45° × 35°  -  19 mm; 32° × 24°
       336x256:  6.8 mm; 44° × 33° - 9 mm; 34° × 26°  -   13 mm; 24° × 18°
    FOV for Full-Sensor Digital Output
       640x512:  9 mm; 69° × 56°  -  13 mm; 45° × 37°  -  19 mm; 32° × 26°
       336x256:  6.8 mm; 45° × 35° - 9 mm; 35° × 27°  -   13 mm; 25° × 19°
 - Spectral Band: 7.5 - 13.5 μm
 - Full Frame Rates: 30 Hz (NTSC); 25 Hz (PAL)
 - Exportable Frame Rates: 7.5 Hz (NTSC); 8.3 Hz (PAL)
 - Measurement Accuracy: +/-5°C or 5% of reading
Physical Attributes:
 - Size (in mm): 5.74 x 4.45 (including lens)
 - Weight: 92g - 113g (Configuration Dependant)
 - Precision Mounting Holes: Two M2x0.4 on each of two sides & bottom. One 1/4-20 threaded hole on top
Image Processing & Display Controls:
 - Image Optimization for sUAS, Digital Detail Enhancement, Invertable Image, Polarity Control (black hot/white
hot), Color Palettes, Zoom
Interfacing:
 - Input Voltage: 4.8 - 6.0 VDC
 - Power Dissipation (peak): 2.1 W (3.9 W)
Environmental:
 - Operating Temperature Range: -20°C to +50°C
 - Non-Operating Temperature Range: -55°C to +95°C
 - Operational Altitude: 12,192m
Optional Power & HDMI Video Module:
 - Input Power Range: 5 VDC – 28 VDC
 - Reverse Polarity Protection, Analog Video Output
 - HDMI Output 1280x720 @ 50hz, 60hz
Applications:
 - Airborne, Handheld imagers, Security Camera, Thermal weapon sights

Buy product
LWIR Camera Cores

LWIR Camera Cores

Model: Muon
Manufacturer: FLIR

Muon™ is a calibrated uncooled thermal camera subassembly developed for thermal product OEMs to integrate with their own image processing, packaging and optical solutions
Imaging Specifications:
 - System Type: 336 x 256,  640 x 512, VOx
 - Spectral Range: 7.5 – 15.0 µm
 - Pixel Size: 17 µm
 - NETD: <50 mK (Muon 640:< 60mK )
Outputs:
 - Digital Video: 16-bit temperature calibrated Parallel Interface video-out (CMOS)
 - Frame Rate (Full Window): 60Hz, 50Hz and <9Hz
Operations & Control:
 - Non-Uniformity Correction (NUC), Bad Pixel Replacement,
 - Camera Control: I2C communication, discrete control
 - Signal Interface: 60-pin Hirose connector
 - Telemetry Data: FPA temperature, FPA type, Frame Rate, Current NUC Table
Physical Attributes:
 - Size: 22 x 22 x 7 mm
 - Weight:  <5 grams
 - Mounting Interface: Four M1.6x0.35 threaded mounting holes
Power:
 - Input Voltage Imaging device standards: 3.3V, 2.5V, 1.8V, 1.2V
 - Power Dissipation: <300mW (336), <450mW (640) at room temperture
Environmental:
 - Operating Temperature Range: -40°C to + 80°C external temp
 - Scene Temperature Range: 50°C above and below ambient temperature
 - Mechanical Shock: 250g 1.0 msec half-sine and 500g 0.8 msec half-sine
 - Vibration: 4.3g; 3 axes, 8 hours each
 - Temperature Shock: 5°C/min
 - Humidity: 5 - 95% non-condensing
 - Operational Altitude: +40,000 feet
Applications:
 - Airborne, Handheld imagers, Security Camera, Thermal weapon sights

Buy product
LWIR Camera Cores

LWIR Camera Cores

Model: PathfindIR II
Manufacturer: FLIR

PathFindIR II is a powerful thermal night vision system that lets you see road hazards clearly in total darkness, detecting and alerting you to nearby vehicles, people, and animals.
System Characteristics:
 - Sensor Type: 320 x 240 Uncooled Microbolometer
 - Field-of-View: 24° (h) x 18° (v)
 - Spectral Band: 8-14 microns (LWIR)
 - Outputs: NTSC
Power:
 - Power Requirements: 12 VDC
 - Power Consumption: 2 W (6 W w/heater on) 1.8 A max. system current
Physical Characteristics:
 - Camera Dimensions: 60 × 86 × 82 mm
 - Camera Weight 0.6 lb (300 g)
 - ECU Dimensions: 148 × 110 × 24 mm
 - ECU Weight: 350 g
Environmental:
 - Operating Temperature: -40°C to 80°C
 - Weather Resistance (Camera): Hermetically Sealed, Automotive Qualified
 - Weather Resistance (ECU): Non-Hermetic; Passenger Compartment mount required
 - Window High-Impact Resistant Optic w/ Built-in
 - Automatic Heating Element, Replaceable Window
Applications:
 - Vehicle OEM, Recreational Vehicles, Mining, Emergency Response Vehicles, Passenger Vehicle Aftermarket



Buy product
LWIR Camera Cores

LWIR Camera Cores

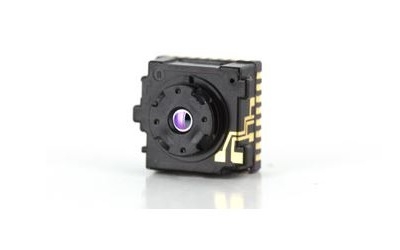

Model: Lepton 160
Manufacturer: FLIR

Lepton® 3 is a complete long-wave infrared (LWIR) camera module designed to interface easily into native mobile-device interfaces and other consumerelectronics
Overview:
 - Sensor technology: Uncooled VOx microbolometer
 - Array format:160 x 120, progressive scan
 - Pixel size: 12 μm
 - Spectral range: 8 μm to 14 μm
 - Scene Dynamic Range: Low Gain Mode: up to 450°C; High Gain Mode: up to 150°C
 - Effective frame rate: 8.8 Hz
 - Thermal sensitivity: <50 mK (0.050° C)
 - FOV - horizontal: 56°
 - FOV - diagonal: 71°
 - Output format: User-selectable 14-bit, 8-bit (AGC applied), or 24-bit RGB (AGC and colorization applied)
Electrical:
 - Input clock: 25-MHz nominal, CMOS IO Voltage Levels
 - Video data interface: Video over SPI
 - Control port: CCI (I2C-like), CMOS IO Voltage Levels
 - Input supply voltage (nominal): 2.8 V, 1.2 V, 2.8 V to 3.1 V IO
 - Power dissipation: 140 mW (operating), 650 mW (during shutter event), 4 mW (standby)
Mechanical:
 - Package dimensions – socket version (w x l x h): 11.8 x 12.7 x 7.2 mm
 - Weight: 0.9 grams
Environmental:
 - Optimum temperature range: -10 °C to +65 °C
 - Non-operating temperature range: -40 °C to +80 °C
 - Shock: 1500 G @ 0.4 ms
Applications:
 - Mobile phones, Gesture recognition, Building automation, Thermal imaging, Night vision



Buy product
LWIR Camera Cores

LWIR Camera Cores

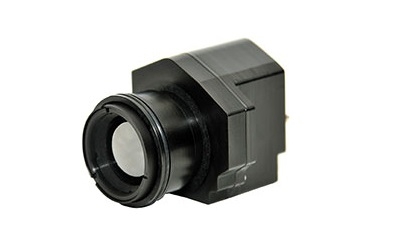

Model: ATOM 640
Manufacturer: SOFRADIR-EC

ATOM 640 is a micro thermal imaging module designed for small UAVs and portable low power military night vision imaging systems
Specifications:
 - Thermal Imaging Camera Core: Uncooled ASi Microbolometer
 - Format: 640 x 480
 - Pixel Geometry: 17 microns
 - Frame Rate: 30Hz
 - Digital Output: 14-bit (Snapshot via USB, streaming via standard Camera Link interface)
 - Size (w x h x l): 46 x 46 x 61
 - Weight: 94 g
 - Input Voltage: 3.0 - 5.0 VDC
 - Power Consumption: 1.4 W
 - Thermal Sensitivity: < 60mK f1.0
 - Time to First Image: < 4 seconds
 - Lens: f1.05 athermalized 40°x 30° (20.44 mm) manual focus
 - Video Processing: AGC, polarity, symbology, NUC correction
 - Operating Temperature Range: -20°C to 49°C
 - Non-operating Temperature Range: -40°C to 71°C
 - Control Interface: USB
Applications:
 - UAV, airborne, military, rescue and fire control, R&D

Buy product
LWIR Camera Cores

LWIR Camera Cores

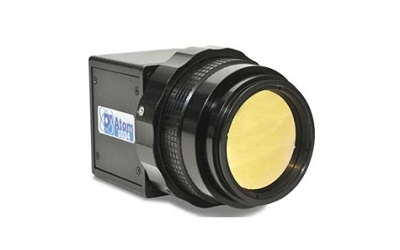

Model: ATOM 1024
Manufacturer: SOFRADIR-EC

The Atom 1024 incorporates an advanced Gen2 1024 x 768 microbolometer FPA and delivers extremely high resolution images in an XGA format
Specifications:
 - Sensor type: Uncooled ASi Microbolometer
 - Array Size: 1024 x 768 pixels
 - Pixel Pitch: 17 µm pixel
 - Detector Spectral Range: 8-14µm
 - Frame Rate: 30Hz XGA (Option for 60Hz VGA)
 - Detector Sensitivity (f/1): < 50 mK
 - Video Processing Non-uniformity correction, Auto/Manual gain, BPR, Digital Zoom, Digital Filtering, Built-in Self Test, Test patterns, External Synchronization
 - Operating Temperature Range: -40°C to 60°C (Gige: -20°C to 60°C)
 - Size (lens not included): 61 x 69 x 94 (mm)
 - Weight (lens not included): < 0.25 kg
 - Input Voltage: 6-12 VDC (3.3 or 3.6 VDC for Gige)
 - Power Consumption: < 1.7 W (for Gige)
Applications:
 - Airborne, military, surveillance, safety

Buy product

@ 2015 Tecotec Group
