Thermal imaging ammunition Testing

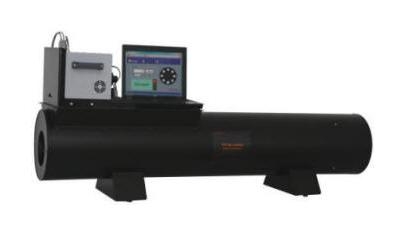

Equipment for testing therlam imager DT200V

Equipment for testing therlam imager DT200V

Model: DT200V
Manufacturer: Inframet
  • Available testing parameters:
  • -  MRTD (Minimal Resolvable Temperature Difference),Auto MRTD
  • -  MTF (Modulation Transfer Function),
  • -  NETD (Noise Equivalent Temperature Difference),
  • -  FPN (Fixed Pattern Noise),
  • -  Non-uniformity (Non-Uniformity),
  • -  SiTF (Signal Transfer Function),
  • -  Distortion,
  • -  FOV (Field of View).
  • - MDTD
  • -  SFR (Slit Response Function)
  • -  NPSD (Noise Power Spectral Density)
  • -  PVF (Point Visibility Factor)
  • -  3D Noise
  • Each set consist of:
  • -  CDT20160HR off axis reflective collimator
  • -  TCB2D blackbody
  • -  MRW 8 rotary wheel
  • -  set of IR targets (twelve 4-bar targets, eight pinhole targets, edge target, FOV/distortion target, rectangle target)
  • -  PAB passive area blackbod
  • -  analog video frame grabbe
  • -  Camera Link frame grabbe
  • -  PC set
  • -  TCB Control computer pro
  • -  TAS-T computer program
  • -  Dubterm computer program
  • -  Simterm computer program
  • -  Mosot computer program
