Roughness tester

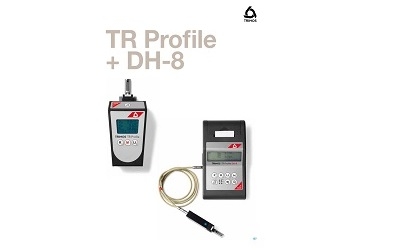

The TR Profile and TR Profile DH-8 are extremely precise surface roughness measuring instruments, built for the use in the workshop and on production lines as well as in the lab. From the simple roughness measurement without accessories, directly on the machine, to the measurements in the laboratory with measuring support, special tracers and other accessories, including the recording of contours, the TR Profile and TR Profile DH-8 offer maximum flexibility for surface analysis. All instruments can be connected to a PC. They are delivered with a simple analysis software.

• Measuring range (Ra):          20 ÷ 350 µm
• Max. permissible errors:        5%
• Repeatability:                        0,009 µm
• Resolution:                            0,01 µm
• Measuring speed:                 0,25/ 0,5/ 1,0 mm/s

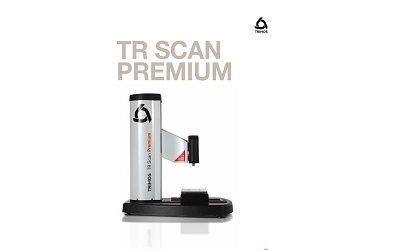

TR Scan Premium allows the measuring of the most sensitive surfaces with astounding speed and precision. It has become unavoidable in many cases for hi-tech applications, when the traditional measuring by contact has reached its limits. Medical appliances, prosthesis, wafers, MEMS, semi-conductors, metallic layers deposits, polymer films, optical components, research and development, quality control, are the areas of expertise of TR Scan Premium.

• Positioning accuracy XYZ:                         1 µm
• Rectitude of the guideways XY:                 0,3 µm

TR Scan Premium DHM S1/ CCM P1/ DIA P1

• Vertical resolution Z:                                   0,1/ 8÷780/ 10 nm
• Lateral resolution XY:                                 0,6/ 0,9÷14/ 1 µm
• Typical measuring range Ra:                      0,4/ 0,012÷200/ 20 µm

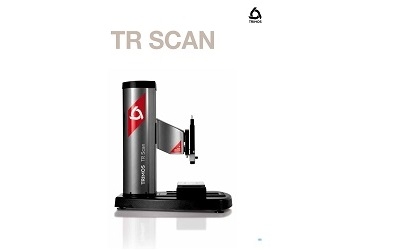

The TR Scan offers an innovative alternative to classical surface measurement. Its modular concept, allowing adaptation to each application, and its simple use, the TR Scan can be operated by workshop. Because of its simplicity of use, the TR Scan can be operated by workshop personnel to get reliable results secured with minimum trainning. All measured surfaces can be treated according to current international standards such as ISO, DIN, JIS, ASME, CNOMO

• Positioning accuracy XYZ:                1 µm
• Rectitude of the guideways XY:     1,5 µm

Measuring heads

• Vertical resolution (Z):                     1/ 8÷22/ 10 nm
• Lateral resolution (XY):                    0,6/ 0,9÷3,5/ 1 µm
• Typical measuring range Ra:           0,4/ >200/ 20 µm
