Night vision

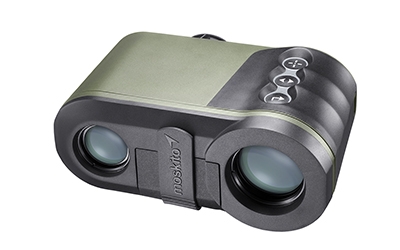

Day & Night Observation MOSKITO TI
Model: MOSKITO TI
Manufacturer: Vectronix
- Day Observation: Monocular , magnification 5x, Field of View 108 mil
- Optics TI Sight: sensor resolution 640x480 pixels, spectral band 8µm to 14µm, FOV 12°
- Optics low light: sensor resolution 1280x1024 pixels, spectral band 400~1100nm, FOV 6.25°
- Rangefinder (distnace): 10m to 10 km, accuracy +/‐2m , laser type 1550nm
- Digital Magnetic Compass :Azimuth and inclination measurement
- Data interface: RS232, USB, blutooth, internet (option)
- Options: internal GPS receiver, laser pointer
- Mass: <1.3kg
- Dimension(mm): 130 x 170 x 80
Long range multifunction cooled infrared Binocular JIM LR
Model: JIM LR
Manufacturer: SAFRAN
- Thermal imager:
- IR cooled detector, resolution 384x288 pixels
- Spectral band: 3-5 µm
- WFOV: 9° x 6.75°, NFOV: 3° x 2.25°
- Visible color chanel:
- Spectral band: VIS
- CCD sensor, resolution of 768x576 pixels
- FOV is 3° x 2.25°
- Laser range finder:
- Type 1.54 µm, eye-safe
- Range: from 10 m up to 10 km
- Digital Magnetic Compass
- Azimuth range: 360°
- Elevation range: ± 40°
- Laser pointer:
- Emitting power: 0.4mW
- Wavelength of 830 nm (+/-30nm) – class 1 laser
- The range of the laser pointer is 300 m
- Global Positioning System:
- Internal C/A type
- Remote control and display (option)
