Microfocus X-Ray Fluoroscopy System

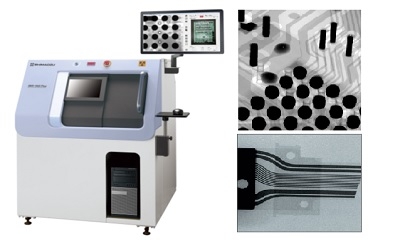

Microfocus X-Ray Fluoroscopy System SMX-1000 Plus

Model: SMX-1000 Plus

Manufacturer: SHIMADZU

Buy product

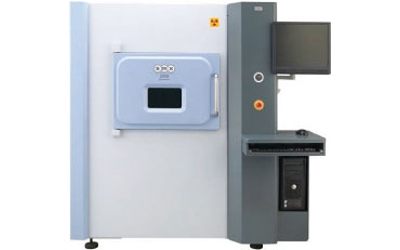

Model: SMX-2000

Manufacturer: SHIMADZU

An X-ray Fluoroscopic inspection system for observing and inspecting internal structures and mounting conditions in electronic devices
Combining a high-output, high-resolution new-model X ray system with a high-resolution flat panel detector produces distortion-free, faithful images
Flexibly designed inspections with Teaching Function and Step Feed Function
In pursuit of high-functionality, easy to use software
Spatial resolution: 1 µm
Maximum sample size: 470 mm × 420 mm × 100 mm, max. 5.0 kg
Inspecton stroke: X: 460 mm; Y: 410 mm; Z: 100 mm, Rotation: ±180°, Tilt: 70°
XX-ray output: Max. tube voltage 160 kV; tube current: 200µA; rated output 21 W
Detector: Flat panel detector
System magnification: 8,700 times
Power supply: single-phase 220 V AC ±10%, 2 kVA,
Weight approx: 2,400 kg

Buy product

Model: SMX-800

Manufacturer: SHIMADZU

Operations such as positioning, zoom-in and zoom-out can be performed directly by touching the large touch screen, enabling anyone to operate the system immediately and improve efficiency.
Truly Efficient Processing at Your Fingertips
High Reliability, Easy to Use, Even for the First Time
Spatial resolution: 50 LP/mm (10 µm), JIMA standard sample
Maximum sample size: 300 mm × 350 mm × 100 mm, max. 2.0 kg
Travel: X: 300 mm; Y: 350 mm; Z: 400 mm
X-ray output: Max. tube voltage 80 kV; rated output 10 W
Detector: Image intensifier
Inspection field of view: 3 mm to 48 mm
Power supply: 220 V AC, 1 kVA (ground resistance < 100 Ω)
External dimensions: W 795 × D 1,115 × H 1,325 mm,
Weight: Approx. 550 kg
