Micro Focus X-Ray CT System

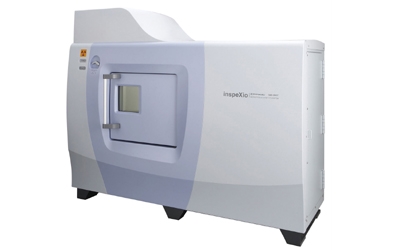

Micro Focus X-Ray CT System SMX-225CT
Model: inspeXio SMX-225CT
Manufacturer: SHIMADZU
- Featuring a proprietary microfocus X-ray tube and high-sensitivity image intensifier, inspeXio SMX-225CT is Shimadzu's top-of-the-line microfocus X-ray
- An intuitive user interface ensures the easy acquisition of clear CT images of a sample's internal structure
- Easy inspection of large samples and covers a variety of applications, from miniaturized electronic devices to aluminum die-casting for automobiles
- Equipped with a wide range of useful functions, inspeXio SMX-225CT is the highest grade of CT inspection machine
- X-Ray Generator: Non-enclosure tube type, Rated power: 135 W; Max. tube voltage: 225 kV; Max. tube current: 1000 μA
- X-Ray Detector: Image intensifier
- Max. Stroke of CT Stage: SOD axis (*1) : 670 mm; SID axis (*2) : Can be switched between 4 levels: 400, 600, 800, and 1,000 mm; Z axis: 300 mm
- Max. Sample Size: 300 mm dia. × H300 mm, 9 kg max.
- Max. CT Scan Area (FOV): 200 mm dia.
- Scanning Methods: Normal scan, half scan, offset scan, FS scan (*3) ,2DCT (*4) /CBCT (*5)
