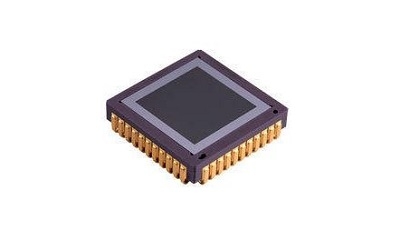

Uncooled thermal imaging sensor

The Pico384 Gen2 is a Surface Mount Device (SMD J-LEAD 44) that is easy to integrate into assembly processes.
Features:
 - Resolution: QGVA 384x288
 - Pixel pitch: 17 µm x 17 µm
 - Spectral response: 8 - 14 μm „
 - Maximum frame rate up to 60 Hz full resolution
 - Overall dimensions (mm): 16.5 x 16.5 x 4.2 pin out excluded
 - Weight: < 3 g
Performance:
 - NETD < 60 mK (F/1, 300 K, 50 Hz) „
 - Low power consumption: < 220 mW
 - Array operability: > 99.8 %
 - Extended operating temperature range: –20°C to + 85°C
 - Surface Mount Device J-LEAD 44, compliant with JEDEC’s reflow and handling standards: J-STD-020E and J-STD-33B
 - Overexposure/sun safe
Appications:
 - Outdoor & leisure, Thermography, Surveillance & Security, Firefighting, Transportation
