3D Coordinate Measuring Machine

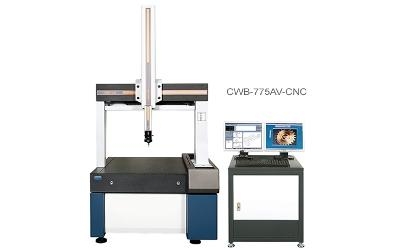

3D Coordinate Measuring Machine CWB-775AV - CNC

3D Coordinate Measuring Machine CWB-775AV - CNC

Model: CWB-775AV - CNC

Manufacturer: Chien Wei

Range (X,Y,Z) (mm): 700x700x500
Resolution (mm): 0.001
Software: IK 5000 Quadra Check +Win-XP
Camera: 1/3" Color CCD+ZOOM
Magnification: 10x...100x
Auto focus: Z axis
Touch probe: Renishaw MH20i
Z axis balance: Cylinder
Operation: CNC
Drive: Servo Motors+Joystick
Transmission: Air Bearing
Accuracy (um): U1=1.5+L/200 U3=3+L/200
Granite plate: DIN. 876, GRADE 0
Demo part high (mm): 500
Demo part weight (kg): 200
