Vibration Meters
Vibration Analyzer Rion VA-12
Model: VA-12
Manufacturer: RION
- Measurement range( Using PV-57I, High pass filter 3Hz, Low pass filter 20 kHz)
- + Acceleration: 0.02 to 141.4m/s2
- + Velocity: 0.2 to 141.4m/s
- + Displacement: 0.02 to 40mm
- Frequency range:
- + Acc: 1Hz -20kHz
- + Vel: 3Hz – 3kHz
- + Disp: 3Hz – 500Hz
- Filters:
- + High pass filer: 1,3,10 Hz và 1 kHz
- + Low pass filter: 1,5,20 kHz
- FFT Model: Time waveform, spectrum, Acceleration envelope curve.
- Power supply: Batteries or AC Adapter
Vibration Level Meter Rion VM-53A
Model: VM-53A
Manufacturer: RION
- Measurement functions: Lv, Lveq, Lva, Lvaeq, Lmax, Lmin, time percentile vibration or vibration acceleration level.
- Measurement time: 10s, 1, 5, 10, 15, 30m, 1, 8, 24h and manual (max to 24h)
- Measurement range:
- + Vibration range: 25~120dB (Z axis), 30~120dB (X, Y axis)
- + Vibration acceleration: 30~120dB (0dB = 10^-5 m/s2)
- Frequency rang: 1 – 80Hz
- Display:
- + Main display is LED Segment
- + Sub display is Matrix LCD 128x64 points
- Output calibration: 31.5Hz, Intergrated sin wave for calibration of other equipment
- AC/DC output: 3 output BNCs, choose between AC or DC, 1Vrms full scale AC and 2.5V full scale DC , (0.25V/10dB), output impedance 600 Ώ.
- Power supply: Pin, AC Adapter or battery pack.
- Dimension: 200 x 56 x 175 mm
- Weight: 1kg.
Vibration Meter Rion VM-63A
Model: VM-63A
Manufacturer: RION
- Measurement range: Acceleration(0.1 to 199.9 m/s2) Peak（RMS × √2) Velocity(0.1 to 199.9 mm/s RMS) Displacement(0.001 to 1.999 mm P-P（RMS × 2√2))
- Frequency range: Acceleration 10 Hz to 1 kHz(LO) 1 kHz to 15 kHz
- (High) Velocity 10 Hz to 1kHz Displacement 10 Hz to 1 kHz
- Display: 3-1/2 digit digital display, display update cycle: 1s
- Power supply: 6F22, 9V battery x 1.
- Ambient conditions: -10 to 50 C, 30 -90% RH

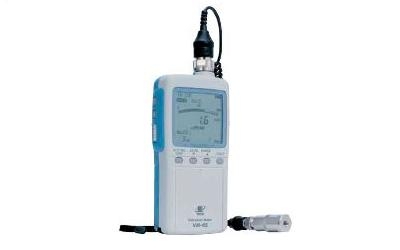

Vibration Meter Rion VM-82A
Model: VM-82A
Manufacturer: RION
- Measurement range:
- + Acceleration: 0.1 to 10,000 m/s2 – 3Hz to 1kHz/ 3Hz to 5kHz/ 3Hz to 20kHz/ 1Hz to 100Hz
- + Velocity: 1 to 10,000 mm/s – 3Hz to 1kHz/10Hz to 1kHz.
- + Acceleration: 0.01 to 1,000 mm - 3Hz to 1kHz/10Hz to 1kHz
- Display: LCD
- Power supply: Alkalines batteries and Nickel-Hydride batteries
