BRINELL Hardness Tester

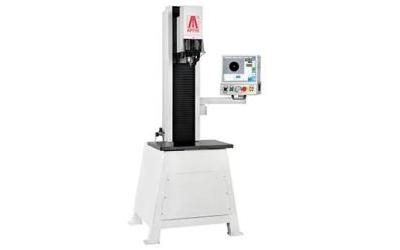

Brinell hardness tester Integral 1
Model: Integral 1
Manufacturer: AFFRI
- X-Y Table: 400x400 mm (Standard)
- Standards: EN-ISO 6506-2 / EN-ISO 6507-2 / EN-ISO 868 / ASTM E-10 / ASTM E-92 / ASTM 2240
- Head Stroke: Fully motorizerd 0/500mm
- Force Range: Brinell - 153.2 - 306.5 - 612.9 - 1226 - 1839 - 2451 - 4903 - 7355 - 9870 - 29421 N (15.6 - 31.2 - 62.5 - 125 - 187.5 - 250 - 500 - 750 - 1000 - 3000 kgf)
- Accuracy: Better than 0.5 %

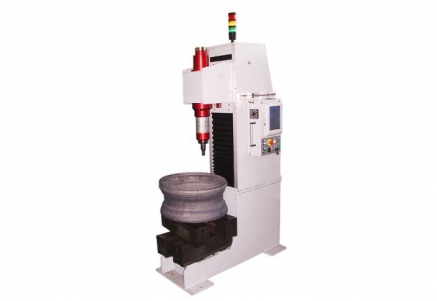

Brinell hardness tester MRS-JET 3000
Model: MRS-JET 3000
Manufacturer: AFFRI
- X-Y Table: 400x400 mm (Standard)
- Standards: EN-ISO 6506-2 / EN-ISO 6507-2 / EN-ISO 868 / ASTM E-10 / ASTM E-92 / ASTM 2240
- Head Stroke: Fully motorizerd 0/500mm
- Force Range: Brinell - 153.2 - 306.5 - 612.9 - 1226 - 1839 - 2451 - 4903 - 7355 - 9870 - 29421 N (15.6 - 31.2 - 62.5 - 125 - 187.5 - 250 - 500 - 750 - 1000 - 3000 kgf)
- Accuracy: Better than 0.5 %

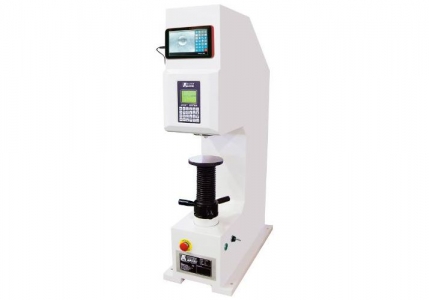

Brinell hardness tester LD 3000
Model: LD 3000
Manufacturer: AFFRI
- Standards: EN-ISO 6506-2 / EN-ISO 6507-2 / EN-ISO 6508-2 / ASTM E-10 / ASTM E-18 / ASTM E-92
- Screw Stroke: 150 mm
- Indenter Stroke: 30 mm
- Depth Capacity: 190 mm
- Force Range:
- + Brinell: 98.07 - 147.1 - 294.2 - 306.5 - 612.9 - 1839 - 2452 - 4903 - 7355 - 9807 - 29421 N (10 - 15 - 30 - 31.2 - 62.5 - 187.5 - 250 - 500 - 750 - 1000 - 3000 kgf)
- + Vickers - knoop: 98.07 - 147.1 -294.2 - 490.3 - 980.7 N (10 - 15 - 30 - 50 - 100 kgf)
- Accuracy: Better than 0.5 %
