Gas Chromatography
-INFICON_GC 3000__thumb_500x300.jpg)

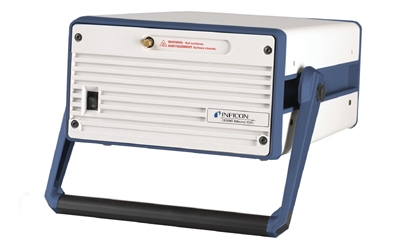

3000 Micro GC Gas Analyzer
Model: 3000 Micro GC
Manufacturer: INFICON
- Rapid analyze
- Detection limit: trace of substance( low ppm )
- Dimension(HxWxD)(cm): 1,2 channel: 15 x 25 x 41, 8.2 kg
- Dimension(HxWxD)(cm): 3,4 channel: 15,5 x 47,2 x 42, 12.2 kg
- Dimension(HxWxD)(cm): Portable: 15,5 x 36,4 x 41,3, 16.6kg
- Temperature operation: 0 - 50ºC
- Carrier gas: hydrogen, helium, nitrogen, argon
- Carrier gas pressure: 552 ± 14 kPa
- Column temperature: ambient+ 15 - 180ºC
- Linear dynamic range: 106 ± 10%
- Repeatability: 0.2 – 1.0%
-INFICON_CMS5000 Broch-water copy_thumb_500x300.jpg)

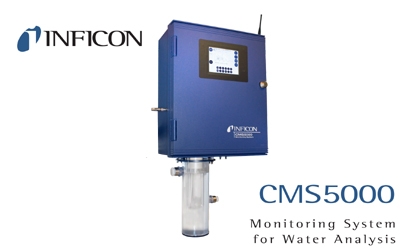

CMS5000 Monitoring System
Model: CMS5000
Manufacturer: INFICON
- Ideal for monitoring VOCs, air and water
- Dimension(HxWxD)(cm): 43 x 83 x 26
- Operation: Temperature: 0 - 50ºC
- Operation: Relative Humidity: 5 – 95% ( non-condensing )
- Carrier gas: argon 99.999%
- Carrier gas pressure: 420 – 690 kPa
- GC Column: DB-1, 0.32 mm ID, 30 m, 4.0 μm
- Heated zones: Valves: 60ºC; Column: 225ºC; Detector: 110ºC
- Dynamic ranges: 3
- Sensitivity: 0.5ppb benzene in water, s/n: 200: 1
- Sensitivity: 0.5 ppb MTBE in water,s/n: 15: 1
- Repeatability: <5% RSD at 1 ppb
- Detection limit : ppb to ppt
-INFICON_MicroGC Fusion_thumb_500x300.jpg)
Micro GC Fusion Gas Analyzer
Model: Micro GC Fusion
Manufacturer: INFICON
- Rapid analysis, 1-3 minutes
- Fast temperature ramping extends analytical capability ( up to C12 )
- Dimension(HxWxD)(cm): 43.3x20x26.5
- Environmental conditions: Temperature: 0 - 50ºC
- Environmental conditions: Relatived humidity: 5 – 95%
- Detector: Mems TCD
- Carrier gas: hydrogen, helium, nitrogen, argon
- GC Column: WCOT, PLOT
- Detection limit: 1ppm
- Linear dynamic range: 106 ± 10%
- Repeatability: Retention time: ≤0.1% RSD
- Repeatability: Peak Area: ≤1%RSD
-INFICON_Explorer_thumb_500x300.jpg)
Explorer Portable Gas Chromatograph
Model: Explorer
Manufacturer: INFICON
- Ideal for monitoring VOCs in environment
- Connected PC – RS232
- Dimension(HxWxD)(cm): 43 x 83 x 26
- Operation: Temperature: 0 - 40ºC
- Operation: Relative Humidity: 5 – 95% ( non-condensing )
- Carrier gas: UHP nitrogen gas
- GC Column: 3
- Temperature: 40 - 80ºC
- Detector: PID – Photoionization 10.6 eV UV lamp standard
- Detection limit : 0.005 – 9999 ppm
- Modes of operation: gas speciation or total VOC
