Electrical Tester
Testing of Electrical Machines, Equipment and Installations

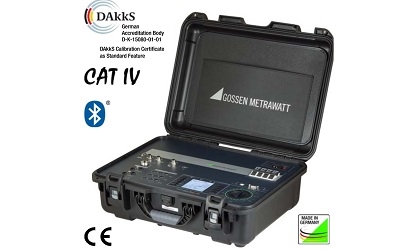

Model: Profitest Prime
Manufacturer: Gossen Metrawatt
- The PROFITEST PRIME if the first All-in-One test instrument for Electrical equipment in AC and DC systems, Machines, Switchgear and controlgear assemblies, Industrial systems, Wind power turbines, Power generators, Electric charging stations
- Voltage measurement up to 1000 V AC/DC
- Low-resistance measurement for protective and equipotential bonding conductors with 200 mA, as well as automatic polarity reversal and 25 A
- Insulation measurement up to 1000 V with rising ramp
- Measurement of internal system resistance and fault loop resistance with high test current up to 690 V AC / 800 V DC without tripping RCD types A and B
- Testing of tripping current and time to trip for RCCB types A, AC, F, B, B+, EV, MI and G/R, as well as SRCDs and PRCDs
- Combined RCD test with continuously rising ramp, time to trip, tripping current
- Testing of RCMs and IMDs
- Measurement of leakage and differential current with the PROFICLIP current clamp
- Measurement of temperature and humidity with a sensor
- Mains and battery operation (with limited functionality)
- Creation of individualized test sequences
- Push-print function – transmission of the measured value via Bluetooth/USB after measurement has been completed
- Bluetooth and USB interfaces
- Windows-based user software with database functionality
