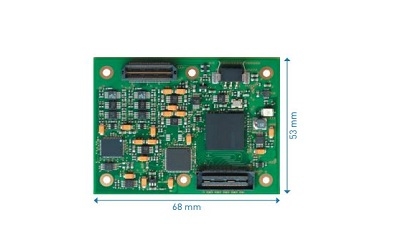

Megalink is a Command and Control Electronic (C&CE) that drives Sofradir detectors and provides a digital video output.
- Detectors: Mars, Epsilon, Scorpio MW/LW, Jupiter (limited to 60 Hz), Snake (limited to 180 Hz)
- Firmware: Adapted to each detector
Electrical performance & interfaces:
- Power consumption: < 1.6 W @ 20°C
- Power supply: 6VDC
- Video input 4 channels : 14 bits ADC up to 20 Msps / SNR > 77dB
- Video output: 1 Cameralink® output (base mode / dual base mode)
- Frame synchronization Internal or external through Cameralink® Control Signal
- Settings control: Cameralink® UART
Mechanical features:
- Dimensions: 68 x 53 x 8.6 mm3
- Board weight: < 25g
- Connector to system: SAMTEC QSH-30-01-C-D-A
- Connector to cooler controller: NICOMATIC 101R03LS
- Operating temperature: -40°C to +71°C
- Environmental conditions: Qualified for military environments (MIL - STD - 810 E)

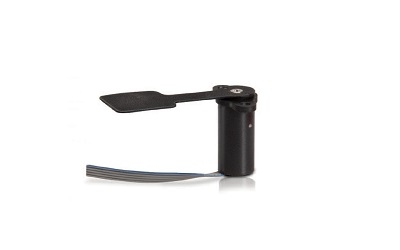

The RS08™ Rotary Shutter is the first shutter of its kind, utilizing a silent, miniature piezo actuator in an 8mm x 20mm package including the drive electronics.
Specifications:
- Weight: 2g
- Dimensions: Diameter 8mm x 20mm Long
- Blade, standard: mass - 0.3 g, Center of Gravity - 16.2mm, MOI - 30g·mm2
- Stroke Time, typical: <60msec for 90°
- Blade position accuracy: ±2°
- Operating Temperature: -40°C to 71°C
- Power Consumption: During motion: peak 400mW in Closed Loop mode
- Drive Voltage: 2.7 to 3.6VDC
- Communication: I2C
- MIL-STD-810F Compliant for shock, vibration, and temperature - Safe & Reliable
