Heignt Gauge

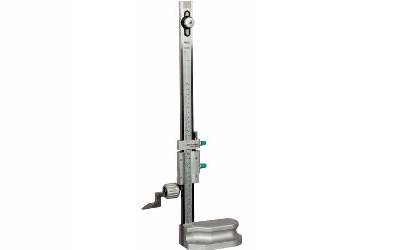

• ·         Used to measure the height of the details with elevations ranging from 0-300mm
• Rapid measurement, high accuracy, Show results on mechanical outlines, easy to manipulate ...
• -          Range : 0-300mm/0-12"
• -          Resolution :  0.02mm/0.001"
• -          Accuracy : ±0.05mm
• -          Made of  stainless  steel  (except  the base)
• -          Supplied with magnifier

• ·         Used to measure the height of the details with elevations ranging from 0-450mm
• Rapid measurement, high accuracy, Show results on mechanical outlines, easy to manipulate ...
• -          Range : 0-450mm/0-18"
• -          Resolution :  0.02mm/0.001"
• -          Accuracy : ±0.05mm
• -          Made of  stainless  steel  (except  the base)
• -          Supplied with magnifier

• ·         Used to measure the height of the details with elevations ranging from 0-600mm
• Rapid measurement, high accuracy, Show results on mechanical outlines, easy to manipulate ...
• -          Range : 0-600mm/0-24"
• -          Resolution :  0.02mm/0.001"
• -          Accuracy : ±0.05mm
• -          Made of  stainless  steel  (except  the base)
• -          Supplied with magnifier

• ·  Used to measure the height of the details with elevations ranging from 0-450mm
• - Rapid measurement, high accuracy, read the results on the clock face, easy to manipulate ...
• -          Range : 0-450mm/0-24"
• -          Resolution :  0.01mm/0.001"
• -          Accuracy : ±0.05mm
• -          Made of  stainless  steel  (except  the base)
• -          With driving wheel

• ·         Used to measure the height of the details with elevations ranging from 0-300mm
• Rapid measurement, high accuracy, read the results on the clock face, easy to manipulate ...
• -          Range : 0-300mm/0-24"
• -          Resolution :  0.01mm/0.001"
• -          Accuracy : ±0.05mm
• -          Made of  stainless  steel  (except  the base)
• -          With driving wheel

• ·         Used to measure the height of the details with elevations ranging from 0-600mm
• Rapid measurement, high accuracy, read the results on the clock face, easy to manipulate ...
• -          Range : 0-600mm/0-24"
• -          Resolution :  0.01mm/0.001"
• -          Accuracy : ±0.05mm
• -          Made of  stainless  steel  (except  the base)
• -          With driving wheel

The TVM is the instruments for height measurements and scribing with high accuracy. Compact design of the instrument is great mobility and extreme stability. It can be used in multiple applications in the workshop area. The simplicity of manipulation allows constant change of the user without any time-consuming training.

• Measuring range:                                          320/ 620/ 1020 mm
• Max. permissible errors:                                0,02/ 0,03/ 0,04 mm
• Repeatability:                                                 0,005 mm
• Resolution:                                                     0,01/0,001
• Measuring force:                                           3 N
• Max. carriage displacement speed:               1500 mm/s

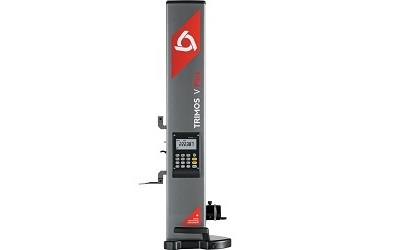

The V/ V Plus is the instrument for height measurements of universal use. Its design is very practical, compact and use of the world. Ease of use and quick performance of all measuring tasks. The measuring system guarantees high precision of use in any manufacturing conditions. The adjustable measuring force allows the performance of measurements on components of delicate material. Measuring range from 300 mm to 1235 mm.

• Application range:                                     535/ 835/ 1235
• Repeatability:                                             2 µm
• Frontal Squareness deviation:                   5/ 8/ 12 µm
• Resolutions:                                                0,01/ 0,001
• Measuring force:                                        0,7 ÷ 1,6 N
• Max. carriage displacement speed:           1500 mm/s

The Vectra-Touch height measuring instruments are of universal use in any production field. This is the instrument for height measurements using advanced technologies in electronics with high precision. The display unit provides functions that are directly accessible and depicted with symbols easy to understand. The robust color touch screen offers great ease of use. Ease of use has been an absolute priority in the requirements, thus resulting in functions, usually considered as complex, such as 2D, programming, statistics, becoming easier.

• Measuring range:                               305/ 610/ 1016/ 1524/ 2034 mm
• With second probe holder:                567/ 872/ 1278/ 1786/ 2296 mm
• Repeatability:                                      1 µm
• Resolutions:                                        10/ 1/ 0,1 µm
• Frontal squareness deviation:             4/ 6/ 10/ 15/ 25 µm
• Max carriage displacement speed:     1000 mm/s
• Measuring force:                                  0.5 ÷ 0.8 N

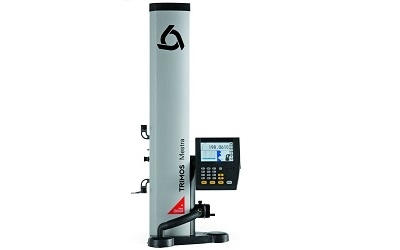

The Mestra and Mestra-Touch are height measuring instruments designed incorporating an entire measuring system is an optimum accuracy level. The extreme ease of use allows unrestricted application in production areas as well as in measuring laboratory environment. The "Mestra" has a display unit incorporating all basic functions such as checking of height, depths, diameters and centerline, squareness deviation, angles and tolerance limits indication. In addition, the "Mestra-Touch" offers a color touch screen and functions such as programming of measuring sequences, statistical analysis of memorized values and display of environmental temperature.

• Measuring range:                                305/ 610/ 1016 mm
• With second probe holder:                  567/ 872/ 1278 mm
• Repeatability:                                       0,5 µm
• Resolutions:                                         10/ 1/ 0,1 µm
• Max carriage displacement speed:      1000 mm/s
• Measuring force:                                  0,5 ÷ 1,8 N
