Antenna test

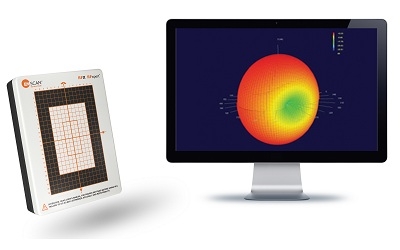

Real-time antenna measurement scanner
Model: RFxpert RFX
Manufacturer: EMSCAN
| - Frequency range: 300 MHz - 6 GHz |
| - Scan area: L 16 cm x W 10 cm (L 6.30” x W 3.94”) |
| - 2D and 3D near-field patterns (amplitude, phase and polarization) |
| - Far-field patterns and bi-sections (cartesian and polar) |
| - 384 H-field probes |
| - Far-field resolution: 1.8° for theta and 3.6° for phi |
| - Measure EIRP and TRP, GRAPH S11, Calculate gain and efficiency, Calculate gain and efficiency |

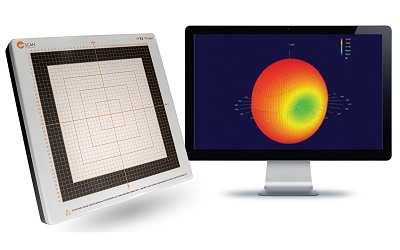

Real-time antenna measurement scanner
Model: RFxpert RFX2
Manufacturer: EMSCAN
| - Frequency range: 300 MHz - 6 GHz |
| - Scan area: L 232 cm x W 232 cm (L 91.34” x W 91.34”) |
| - 2D and 3D near-field patterns (amplitude, phase and polarization) |
| - Far-field patterns and bi-sections (cartesian and polar) |
| - 384 H-field probes |
| - Far-field resolution: 1.8° for theta and 3.6° for phi |
| - Measure EIRP and TRP, GRAPH S11, Calculate gain and efficiency, Calculate gain and efficiency |
| - OTA phantom head+hand test kit |
| - MCP jig to test large antennas up to 2.3 m |
