Introducion:

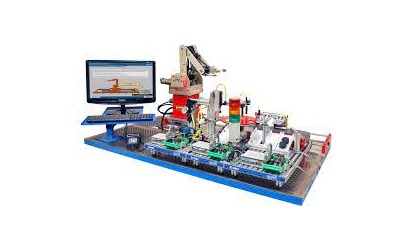

• Amatrol’s Tabletop Mechatronics Servo Robot Learning System proves that you can have all the features of a larger mechatronics system with the space-saving footprint of a tabletop system.

Training Program:

• Programming a Servo Robot
• Programming a Servo Conveyor
• Interfacing a Robot to a PLC
• Function of a Robot-based Inventory System
• Robot-based Inventory System Operation
• Function of a Robot WorkEnvelope
• Programming Conditional Commands

Technical Specification:

The system includes:

  - Tabletop Mechatronics Learning System (Three Individual Stations Form One Mechatronics Line)

      + Inventory Station - Table Top Mechatronics

      + Inspection Station - Tabletop Mechatronics

      + Distribution Station - Tabletop Mechatronics

  - Pegasus II Robotic Learning System

      + Servo Robot:

        Construction: articulated, double jointed, revolute

        Axes: 5

        Payload: 2.2 lb. (1 kg.)

        Repeatability: + .007 in. (.18 mm)

        Maximum speed: 23.6 inches/second (599.4 mm/sec)

        Actuators: 6 DC servo motors with closed loop control

      + Soft Key Teach Pendant

  - 40-inch Linear Traverse

Option :

• Multimedia Courseware
• Servo Robot Station

Tabletop Mechatronics
