Cooled thermal imaging core

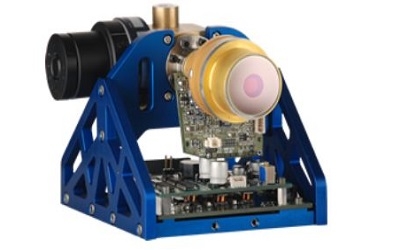

Photon HRC is one of the smallest high-resolution (640x512) MWIR cooled camera cores in the world. Based on our 15-micron pitch, high performance, low power, vv
Imaging Specifications:
 - Array Format: 640 x 512
 - Detector Size: 15 µm x 15 µm
 - Spectral Band: 3.4 – 5.2 µm
 - Full Frame Rates: 30 Hz
 - Detector Material: InSb
 - Sensitivity (NEdT): < 25 mK (<20 mK typical)
 - Cooldown Time: < 6.5 minutes at 22°C and under 10 minutes at 71°C
 - Dimensions: 86 x 88 x 116 mm
 - Weight: < 454 g
 - f/number:f/4 (Standard),  f/5.5 (Optional)
 - Maximum Pixel Rate: 10.5 MHz
 - Video – Analog: NTSC or PAL (Switchable)
 - A/D: 10.5 MHz, 14 bit
 - Video – Digital: 8 or 14-bit Serial LVDS
 - Electronic Zoom: 2×, 4×
 - Power Consumption: < 8 W steady state @ 22°c
 - Input Voltage: 9.0 - 24.0 VDC
 - Operating Temperature: -40°C to +65°C
Applications:
 - UAV, Airborne, Missile, Surveillance
