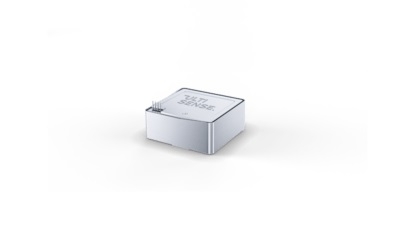

Vectronix DMC is an extremely accurate and reliable magnetic compass that has now proven itself in over 100,000 optoelectronic devices
Types and variations:
- Azimuth (heading) accuracy: ± 0.5°
- Elevation / Bank: -45 to +45 degree
- Elevation and bank accuracy: ± 0.2°
- Housing material: Aluminium
- Operating temperature range: -32 °C to +55 °C
Technical specifications:
- Power supply: 4.75 - 5.25 V
- Current consumption: 40 - 50 mA
- Power consumption: 225 mW
- Communication interface: RS232, 5V TTL
- Weight: 28 g
- Dimensions (L x W x H): 33 x 31 x 13 mm
- Shock (half sine): 50 g / 11 ms, 2000 g / 0.5 ms
- Vibration: random, 5 Hz to 2 000 Hz, 120 min each axis, 0.04 g² / Hz
