Electrical refrigeration and Waster water treatment

Introducion:

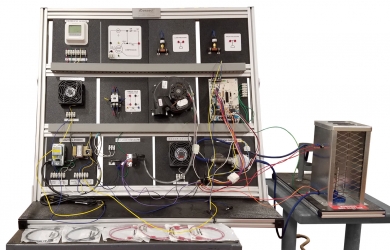

• This trainer is a great demonstrator to show the complete cycle of a residential heating and cooling system.
• Built as a tabletop unit with 12 modular panels, it functions as a working model so the instructor can teach the basic principles of heating and cooling, complete with all the elements.
• For the heating system, the unit includes a working model of a furnace burner.
• Using the furnace print in the manual to direct wire this system from start to finish, the student gains familiarity of the operation of an entire furnace system.
• The air conditioning portion of this system is simulated with the compressor contactor, high-pressure and low-pressure controls, and the compressor panel, with direct wiring or plug and play options.

Training Program:

• Introduction to basic electrical theory
• Instruction aligns with ANSI/ACCA Quality Installation and ANSI/ ACCA/ ASHRAE Standard 180 Quality Maintenance protocols
• Concepts focus on alternating current production and application to devices utilized in HVACR systems
• Presentations and examples are given for specific devices and their electrical sequence of operation in normal HVACR applications
• The modules discuss wiring and schematic reading

Technical Specification:

• Electrical requirements: 120VAC; 60Hz; 15A
• Overall size: 45” L x 24” W x 39” H
• 120VAC with transformer supplying 24VAC low voltage
• The unit comes standard with 12 panels
• Wiring harnesses provided
• Fuel source is a customer-supplied standard propane canister

Option :

• Combustion Blower Panel
• Control Module Panel
• Control Power Panel
• High/Low Pressure Safety Panel
• Combination Gas Valve Panel and Burner
