Measuring angle - radius - prism

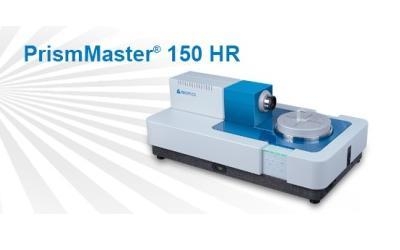

Goniometer PrismMaster®150HR

Model: PrismMaster®150HR

Manufacturer: Trioptics

enable to carry out the following test
Angle measurements of polygons, prisms and wedges
Surface tilt errors of prism and polygons
Wedge errors, parallelism of optical windows
Deflection angle measured in transmission
Index of refraction of optical glasses
Angles of microprisms
Pyramidal errors
Angular gauge block
Electronic autocollimator: EFL 150/200 mm, Diameter 30 mm Resolution 0.01; Repeatability ± 0.5
Bearing of the sample table: Air bearing (compressed air required)
Rotation of the table: auto
System accuracy (in arcseconds):
+ Single measurement: 1
+ Pyramidal error: +/- 3 arcsec
