Process Control

Introducion:

• It groups two types of regulation:
• Regulation by PID of water level with 4-20mA hydrostatic pressure sensor.
• Regulation by PID of water flow rate with 4-20mA analogue flowmeter.

Training Program:

• Putting an electrical installation into service.
• Learning about and using a PID regulator, a hydrostatic sensor, and a 4-20mA flowmeter.
• Using a regulation system for water level and flow rate by analogue signal 4-20mA.
• Using and configuring a speed variator locally and from programming software.
• Measuring, analysing and interpreting analogue signals.
• Learning industrial maintenance.

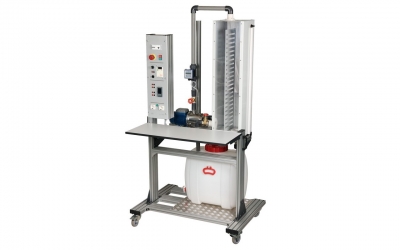

Technical Specification:

• Frame made of matt anodized aluminium mounted on four casters, two with brakes.
• A bottom tank of 100L.
• One top tank of 60L with 2 transparent sides.
• One three-phase motor pump 230V/400V with a power of 750W.
• One rotary valve for manually adjusting the water flow rate at the pump outlet.
• One rotary valve for adjusting the water leak level at the tank outlet.
• One ¼ turn valve for rapid draining of the tank.
• One 4-20mA flowmeter with integrated digital display.
• One hydrostatic pressure sensor 4-20mA directly mounted on the tank wall.
• One electrical console
• Melamine shelf with dimensions 1000 x 400 mm.

Option:

• PID communicating with software for drawing curves
• COMPUTER HOLDER OPTIONS
• FLOW INDICATOR WITH FLOAT
