Renewable Energy

Introducion:

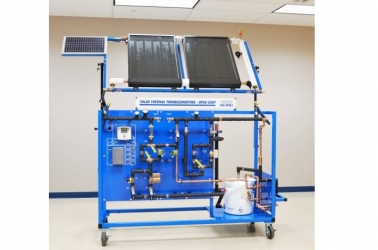

• Amatrol’s Solar Thermal Troubleshooting — Open-Loop/ Closed-Loop Learning System teaches learners how to connect, operate, program, and troubleshoot open-loop / Closed-Loop solar thermal systems.
• The combination of in-depth, multimedia curriculum with real-world equipment gives learners hands-on experience with both drainback and pressurized open-loop / Closed-Loop solar thermal systems.
• Solar Thermal Troubleshooting supports the NABCEP (North American Board of Certified Energy Practitioners) test for Certified Solar Thermal System Installer.

Training Program:

• Solar Collectors
• Pumps
• Solar Storage Tanks
• Air Vent and Vacuum Valves
• Check and Ball Valves
• PV-Powered Solar Thermal Systems
• Freeze Protection
• Draindown System Operation
• System Troubleshooting
• Balance of System Components
• Digital Differential Controllers
• Pressurized Closed-Loop Solar Thermal Systems
• Drainback Solar Thermal Systems
• System Programming
• Heat Exchanger

Technical Specification:

• Mobile Technology Workstation
• Component Circuit Panel
• Centrifugal Pumps (2)
• Heat Exchanger
• Differential Controller
• Temperature Probe
• Solar Storage Tank
• Drainback Tank and Expansion Tank
• Valve Package
• Solar Collectors (2)
• Fault Insertion System
• Multimedia Curriculum , Teacher’s, Assessment Guide , Installation Guide and Student Reference Guide
• Solar Thermal Sun Simulator
• Solar Thermal Charging Station
• Electric (120 VAC/60 Hz/1 phase)

Option:

• Solar Thermal Closed-Loop Troubleshooting Multimedia
• Solar Thermal Cold Water Supply Station
• Solar Concepts Learning System
• Solar Instruments Package
