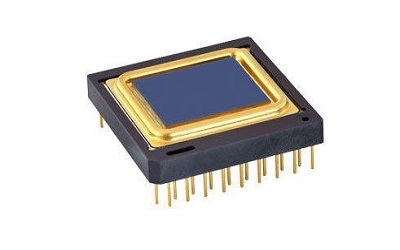

Uncooled thermal imaging sensor

Pico640 Gen2 VGA is designed for equipment manufacturers and demanding users
Features:
 - Resolution:VGA 640 x 480
 - Pixel pitch: 17 µm x 17 µm
 - Spectral response:  8-14µm
 - Overall dimension (mm): 24.13x24.13x4.14 pin out excluded
 - Weight : <6.5g
Performances:
 - Array operability: > 99.5% ou > 99.8%*
 - NETD<40mK or 50mK*@30Hz, 300K, F/1
 - Frame Rate : up to 120Hz
 - Power consumption: < 130mW
 - Operating Range : -40°C to +85°C
 - Standards: MIL-STD-810 and -883
 - Over exposure / Sun safe
Ordering references: „ PICO640-046 „ PICO640-046+
Applications:
 - Surveillance & Security, Outdoor leisure activities, Military, Thermography
