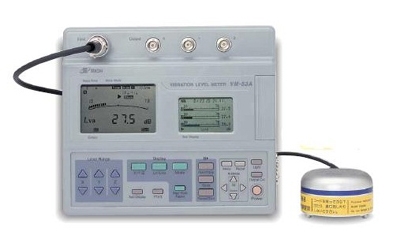

Vibration Level Meter Rion VM-53A
Model: VM-53A
Manufacturer: RION
- Measurement functions: Lv, Lveq, Lva, Lvaeq, Lmax, Lmin, time percentile vibration or vibration acceleration level.
- Measurement time: 10s, 1, 5, 10, 15, 30m, 1, 8, 24h and manual (max to 24h)
- Measurement range:
- + Vibration range: 25~120dB (Z axis), 30~120dB (X, Y axis)
- + Vibration acceleration: 30~120dB (0dB = 10^-5 m/s2)
- Frequency rang: 1 – 80Hz
- Display:
- + Main display is LED Segment
- + Sub display is Matrix LCD 128x64 points
- Output calibration: 31.5Hz, Intergrated sin wave for calibration of other equipment
- AC/DC output: 3 output BNCs, choose between AC or DC, 1Vrms full scale AC and 2.5V full scale DC , (0.25V/10dB), output impedance 600 Ώ.
- Power supply: Pin, AC Adapter or battery pack.
- Dimension: 200 x 56 x 175 mm
- Weight: 1kg.
