5 MHz to 26 GHz Signal Source Analyzer APPH20G

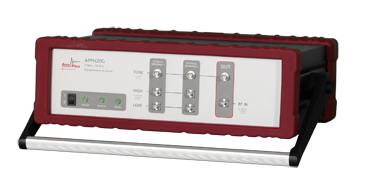

The APPH20G is a fully contained signal source analyzer (SSA) from 5 MHz to 26 GHz. It supports absolute and residual phase noise (from 0.01 Hz to 50 MHz offset) as well as transient and baseband FFT analysis. It also support spectrum and phase monitoring and provides fast sweeping automated test modes for VCO characterization or high volume phase noise testing.

Features:

  • All-in-one compact measurement system
  • Measurements down to -185 dBc/Hz
  • Offset range from 0.01 Hz to 50 MHz
  • Selectable internal or external reference
  • Powerful GUI
  • Remote control via LAN VXI-11, USBTMC or GPIB

Applications:

  • General purpose phase noise tests
  • Absolute and residual phase noise measurements supported
  • Pulsed measurement option
  • Time domain and spectrum analysis
  • Cross-correlator FFT analysis
  • VCO testing bench
  • Built-in frequency counter and power detector
  • High-speed Automated production testing

Specifications:

  • Frequency Range: 5 MHz to 26 GHz

                         5 MHz to 15 GHz

  • Input Power Range: -10 dBm to +20 dBm

-5 dBm to +23 dBm

  • Offset Analysis Range: 0.1 Hz to 50 MHz

                                       0.1 Hz to 20 MHz

                                 0.1 Hz to 5 MHz

Options:

  • PULSE: Pulsed RF phase noise measurements supported
  • LN: Low Noise Internal References
  • GPIB: IEEE-488.2,1987 programming interface

Source: RSI
