All-In-One Oscilloscopes Include Built-In Instruments MDO-2000E

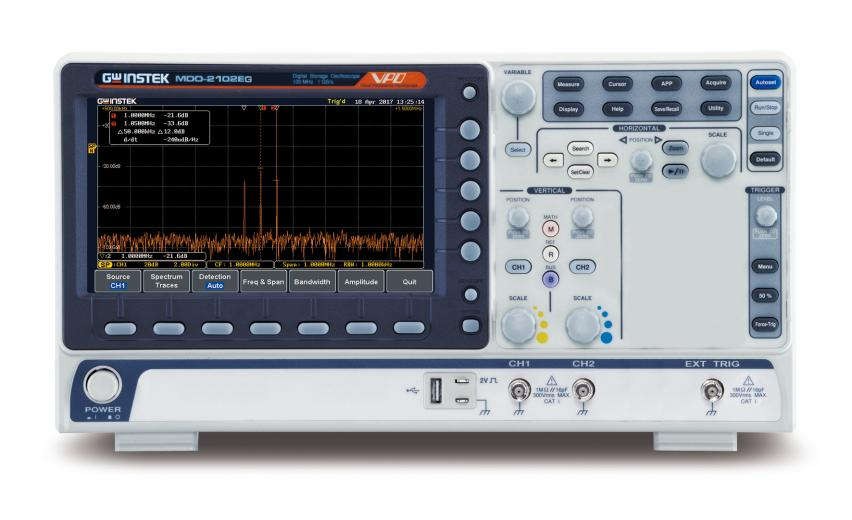

The MDO-2000E Series oscilloscopes from GW Instek combine several test instruments in one enclosure. The series includes two instrument combinations: MDO-2000EG with built-in true spectrum analyzer and dual channel 25 MHz AWGs; and MDO-2000EX with built-in true spectrum analyzer, AWG, 5,000 count DMM, and 5V/1A power supply.

The oscilloscopes enable precision signal measurements in the frequency domain. While observing frequency domain display, waveform characteristics can be observed which are not easily seen from time domain waveforms, such as the harmonic composition of a waveform and the frequency characteristics of a modulation signal.

The spectrum function of the series can test signals that are below 9 kHz. The scopes can also test signals that have a dc component without damaging the instrument. Utilizing advanced digital circuitry and software to render the frequency display, the series offers the same capabilities as real-time spectrum analyzers, but with faster frequency sweeping.

Available in three bandwidths: 70, 100 and 200 MHz and in 2 or 4 channel models, the MDO-2000E oscilloscope series is available now.

Model	MDO-2204E(G/X)	MDO-2202E(G/X)	MDO-2104E(G/X)	MDO-2102E(G/X)	MDO-2074E(G/X	MDO-2072E(G/X)
Bandwidth	200MHz	200MHz	100MHz	100MHz	70MHz	70MHz
Channels	4	2	4	2	4	2
Record Length	10M / ch	10M / ch	10M / ch	10M / ch	10M / ch	10M / ch
Real-time Sampling Rate	Max. 1 GSa/s	Per channel 1 GSa/s	Max. 1 GSa/s	Per channel 1 GSa/s	Max. 1 GSa/s	Per channel 1 GSa/s
Built-in	MDO-2000EG : Spectrum Analyzer ; Dual Channel 25MHz Arbitrary Waveform Generator MDO-2000EX : Spectrum Analyzer ; Dual Channel 25MHz Arbitrary Waveform Generator ; Power Supply and DMM

Source: RSI
